With 20 SFP+ 10-gigabit ports, 4 SFP28 25 Gb ports and 2 QSFP 40 Gb ports, the new Luminex O26-I switch meets the demand for high bandwidth, connectivity and port availability in very high-speed professional AV networks.
Designed to transport audio data, uncompressed video, lighting and intercom signals in both installation and touring environments, it comes preconfigured to support numerous AV protocols: NDI™, Dante™, AVB/MILAN, RAVENNA/AES67, ST-2110, IPMX, MA-Net, etc.
The 40 Gb ports can be deployed as 4 × 10 Gb, allowing up to 28 ports at 10 Gb along with 4 ports at 25 Gb.
With its two built-in power supplies, the GigaCore O26-I provides redundant power in its 1U rack format for critical, continuous operations.
It is presented in this video by Axelle Guilliams (European Business Development Manager at Luminex), who introduces the 2025 innovations, including the latest developments of the dedicated Araneo software, which allows visual configuration and monitoring of demanding networks.
.

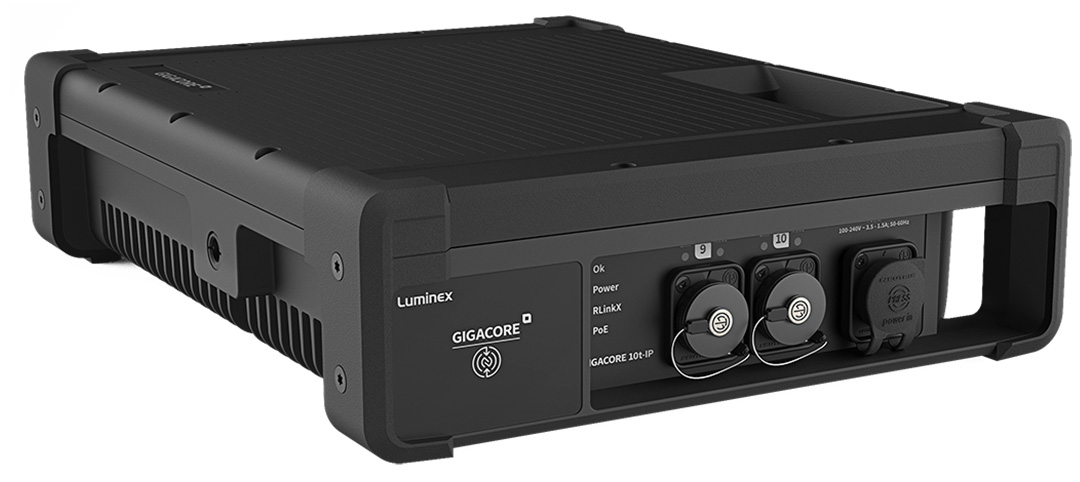

GigaCore 10t-IP
As expected, the GigaCore 10t-IP (up to 10 Gb) completes the range of IP65-rated Luminex AV switches designed to withstand the constraints of outdoor events: dust, moisture, etc.
Housed in a ½-U rack, it features 8 1-Gb EtherCon ports and two optical fiber ports.
Its passive, fanless cooling improves durability and ensures completely silent operation.
PoE++ implementation on every copper port allows connection of any PoE-powered device: cameras, nodes, loudspeakers, with all current PoE standards supported (802.3af, 802.3at and 802.3bt). It can also be configured using an application connected via NFC.
